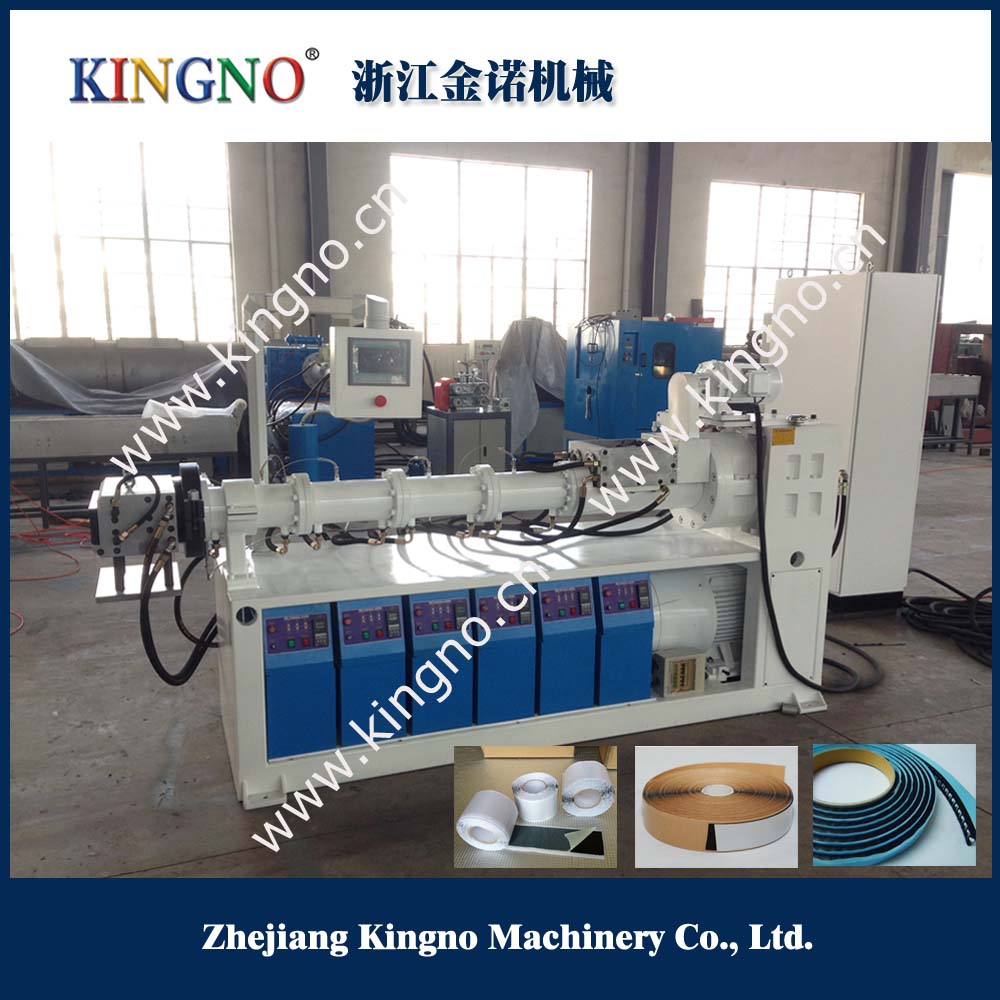

100mm Butyl Rubber Extruder
(1) Screw diameter: Φ100mm, L/D 20:1
(2) Screw barrel material: 38CrMoAl, nitriding treatment
(3) Screw speed: 0~40rpm, speed control by inverter
(4) Thermoregulation unit: heating by water,cooling by water
(5) Thermoregulation unit power: 6kw
(6) Feed type: cold feed with double roller, feed material type is block
(7) Feed motor power: 3.7kw
(8) Feed roller speed: 0~37rpm, control by inverter
(9) Output: 180 - 250kg/h
(10) Gearbox: hard surface gears
(11) AC motor: 37kw, inverter control
(12) Machine frame: Steel board and tube welded together
(13) External dimension: 2900(L) x1000(W) x 1500(H)mm
(14) Installation power: 73kw
