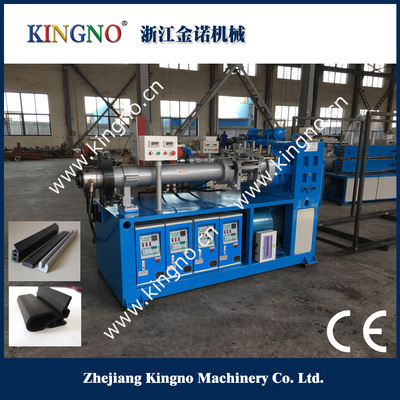

90mmx16D Cold Feed Rubber Extruder
(1) Feed type: Cold force feeding
(2) Feed zone cold media: By water
(3) Feed cleaning type: Cover is easy to be opened and closed
(4) Feed structure: Auto feed with roller
(5) Roller material: 38CrMoAl, nitride treatment
(6) Roller surface hardness: Nitride treatment, HRC 55
(7) Both sides of roller thread type: Reverse thread
(8) Screw diameter: Φ90mm
(9) Screw effective length: 90x16D=1440mm
(10) Screw and barrel structure: General type
(11) Screw and barrel heat and cold media: By water
(12) Screw and barrel thermoregulation unit: 3 zones, 6kw x 3
(13) Screw and barrel material: 38CrMoAlA
(14) Screw and barrel surface hardness: Nitride treatment, HRC 55
(15) Screw rotation speed: 0-43 rpm
(16) Output: 360-420 kg/h
(17) Gearbox type: Hard surface gears
(18) AC motor: 55kw
(19) Extrusion die: Change die can be make different size
(20) Machine frame: Square steel, steel board
(21) Weight: 2600 kg
(22) Dimension: 2500(L) x 1050(W) x 1600(H)
